    Ball Head Graphite Milling Cutter C10 2BP Series End Mill 10mm 12mm

    Ask Lasest Price
    Brand Name : DTECH or OEM
    Model Number : C10-2BP
    Certification : ISO9001/TS16949
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100000PCS per 30days
    Delivery Time : 2 weeks after the prepayment
    • Product Details
    • Company Profile

    Ball Head Graphite Milling Cutter C10 2BP Series End Mill 10mm 12mm

    C10 2BP Series Ball Head Milling Cutter Two-Blade Air Avoidance Typet For Graphite Material Processing


    C series tools are widely used in graphite glass hot bending mold, graphite electrode, zirconia denture, carbon drill materials and other industries


    1: suitable for graphite materials, zirconia, carbon drill, glass fiber and other materials processing

    2: Adopt high-performance CVD diamond coating, with ultra-high hardness + ultra-low friction coefficient + wear resistance

    3: Suitable for oil mist cooling, air cooling, and other cooling environment cutting use

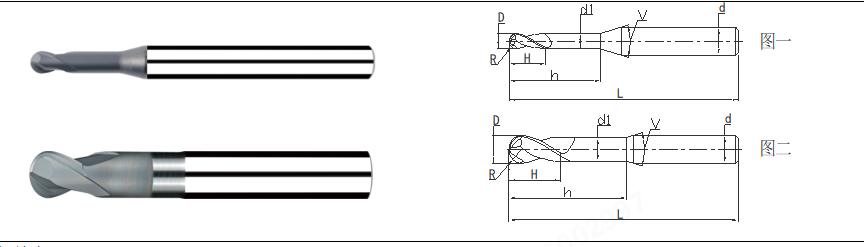

    型号 Order NO规格  Dimensions (mm)
    DRHd1hdL
    C10-2BP010-R0.5-051.00.52.00.955.0450
    C10-2BP015-R0.75-101.50.753.01.4410.0450
    C10-2BP020-R1.0-152.01.04.01.9215.0450
    C10-2BP020-R1.0-202.01.06.01.9220.0475
    C10-2BP030-R1.5-153.01.56.02.915.0450
    C10-2BP040-R2.0-204.02.08.03.920.0475
    C10-2BP040-R2.0-254.02.08.03.925.0475
    C10-2BP040-R2.0-404.02.012.03.940.06100
    C10-2BP050-R2.5-305.02.512.04.930.0675
    C10-2BP060-R3.0-306.03.014.05.930.0875
    C10-2BP060-R3.0-406.03.014.05.940.08100
    C10-2BP080-R4.0-408.04.018.07.940.010100
    C10-2BP100-R5.0-4010.05.018.09.840.010100
    C10-2BP120-R6.0-4012.06.022.011.840.012100
    C10-2BP120-R6.0-6012.06.022.011.860.012120
