Brand Name : | DTECH or OEM |
Model Number : | F20-2EL |
Certification : | ISO9001/TS16949 |
Price : | Negotiable |
Payment Terms : | T/T, L/C |
Supply Ability : | 100000PCS per 30days |
Delivery Time : | 2 weeks after the prepayment |

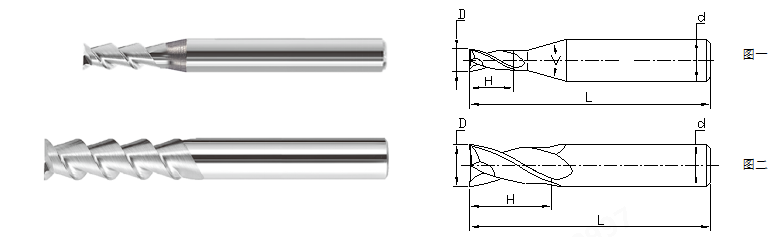

F20 Long Type 2 Flute End Milling Cutters For Copper Alloy Material Processing
AL series tools are widely used in aerospace, automotive, electronic communication, home appliances and other wide range of parts processing
1: suitable for the series of copper, aluminum alloy and other materials processing
2: Suitable for oil mist cooling, water cooling, oil cooling, and other cooling environment cutting use
型号 Order NO | 规格 Dimensions (mm) | |||
D | H | d | L | |
F20-2EL020 | 2.0 | 8.0 | 4 | 75 |
F20-2EL030 | 3.0 | 12.0 | 4 | 75 |
F20-2EL040 | 4.0 | 16.0 | 4 | 75 |
F20-2EL040-020 | 4.0 | 20.0 | 4 | 100 |
F20-2EL050 | 5.0 | 20.0 | 6 | 75 |
F20-2EL060 | 6.0 | 24.0 | 6 | 75 |
F20-2EL060-030 | 6.0 | 30.0 | 6 | 100 |
F20-2EL080 | 8.0 | 32.0 | 8 | 75 |
F20-2EL080-040 | 8.0 | 40.0 | 8 | 100 |
F20-2EL100 | 10.0 | 40.0 | 10 | 100 |
F20-2EL120 | 12.0 | 45.0 | 12 | 100 |
F20-2EL160 | 16.0 | 65.0 | 16 | 150 |
F20-2EL200 | 20.0 | 75.0 | 20 | 150 |
![]() |
