EX Long P50-2B 3mm Ball Nose Cutter Polished 2 Flute Ball Nose End Mill

Ask Lasest Price
Brand Name :	DTECH or OEM
Model Number :	P50-2BX
Certification :	ISO9001/TS16949
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100000PCS per 30days
Delivery Time :	2 weeks after the prepayment

Add to Cart

Product Details
Company Profile

EX Long P50-2B 3mm Ball Nose Cutter Polished 2 Flute Ball Nose End Mill

P50-2B EX Long Type Ball End Milling 2 Flute For Cast Iron & Carbon Steel Material <50HRC Processing

P series cutting tools are widely used in various fields, widely used in automotive manufacturing, 3C electronics, medical equipment, general machinery, hardware parts, shipbuilding and other fields of HRC within 50 degrees of steel processing. For example, various parts of automobile manufacturing industry also need various tools to process and repair auto parts; 3C electronic and electrical industry needs precise tools to perform fine cutting processing; medical device industry uses tools to make surgical tools and other medical devices; general machines and shipbuilding industry also need various different tools for various parts machining

Ball End Milling Cutters With 2 Flute For Carbon Steel

1: Suitable for ordinary structural steel, cast iron, carbon steel, alloy steel material (50 HRC) and other materials processing

2: Adopt high performance AlCrN coating with high temperature resistance and wear resistance

3: Suitable for oil mist cooling, water cooling, oil cooling, air cooling and other cooling environment cutting use

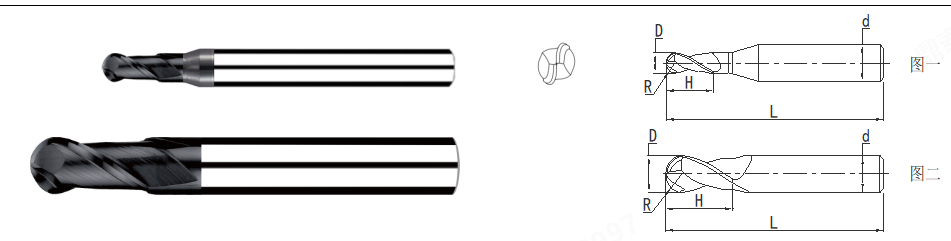

型号　Order NO	规格　　Dimensions (mm)
	规格　　Dimensions (mm)
	D	R	H	d	L
P50-2BX010S-R0.5	1.0	0.5	2.0	4	100
P50-2BX015S-R0.75	1.5	0.75	3.0	4	100
P50-2BX020S-R1.0	2.0	1.0	4.0	4	100
P50-2BX025S-R1.25	2.5	1.25	5.0	4	100
P50-2BX030S-R1.5	3.0	1.5	6.0	4	100
P50-2BX035S-R1.75	3.5	1.75	7.0	4	100
P50-2BX040S-R2.0	4.0	2.0	8.0	4	100
P50-2BX010-R0.5	1.0	0.50	2.0	6	100
P50-2BX015-R0.75	1.5	0.8	3.0	6	100
P50-2BX020-R1.0	2.0	1.00	4.0	6	100
P50-2BX025-R1.25	2.5	1.3	5.0	6	100
P50-2BX030-R1.5	3.0	1.50	6.0	6	100
P50-2BX035-R1.75	3.5	1.8	8.0	6	100
P50-2BX040-R2.0	4.0	2.00	8.0	6	100
P50-2BX050-R2.5	5.0	2.5	10.0	6	100
P50-2BX055-R2.75	5.5	2.75	12.0	6	100
P50-2BX060-R3.0	6.0	3.0	12.0	6	100
P50-2BX070-R3.5	7.0	3.50	14.0	8	100
P50-2BX080-R4.0	8.0	4.0	18.0	8	100
P50-2BX090-R4.5	9.0	4.50	18.0	10	120
P50-2BX100-R5.0	10.0	5.0	20.0	10	120
P50-2BX120-R6.0	12.0	6.00	24.0	12	120

SIDE CUTTING
加工材料	Carbon steel HRC30 coarse processing(4 flute)				Carbon steel HRC30-42 coarse processing(4 flute)
刃径D(mm)	线速度 Vc=m/min	转速 S=N/min	每齿进给 fz=mm/z	进给速度 F=mm/min	线速度 Vc=m/min	转速 S=N/min	每齿进给 fz=mm/z	进给速度 F=mm/min
1	62.83	20000	0.003	200	62.83	20000	0.003	200
2	94.25	15000	0.006	360	94.25	15000	0.006	350
4	125.66	10000	0.016	640	100.53	8000	0.017	535
6	120.64	6400	0.027	690	99.9	5300	0.027	575
8	120.64	4800	0.035	680	100.53	4000	0.035	565
10	119.38	3800	0.044	670	100.53	3200	0.044	560
12	120.64	3200	0.052	670	99.9	2650	0.053	560
16	120.64	2400	0.066	630	100.53	2000	0.066	525
20	119.38	1900	0.082	620	100.53	1600	0.080	515
